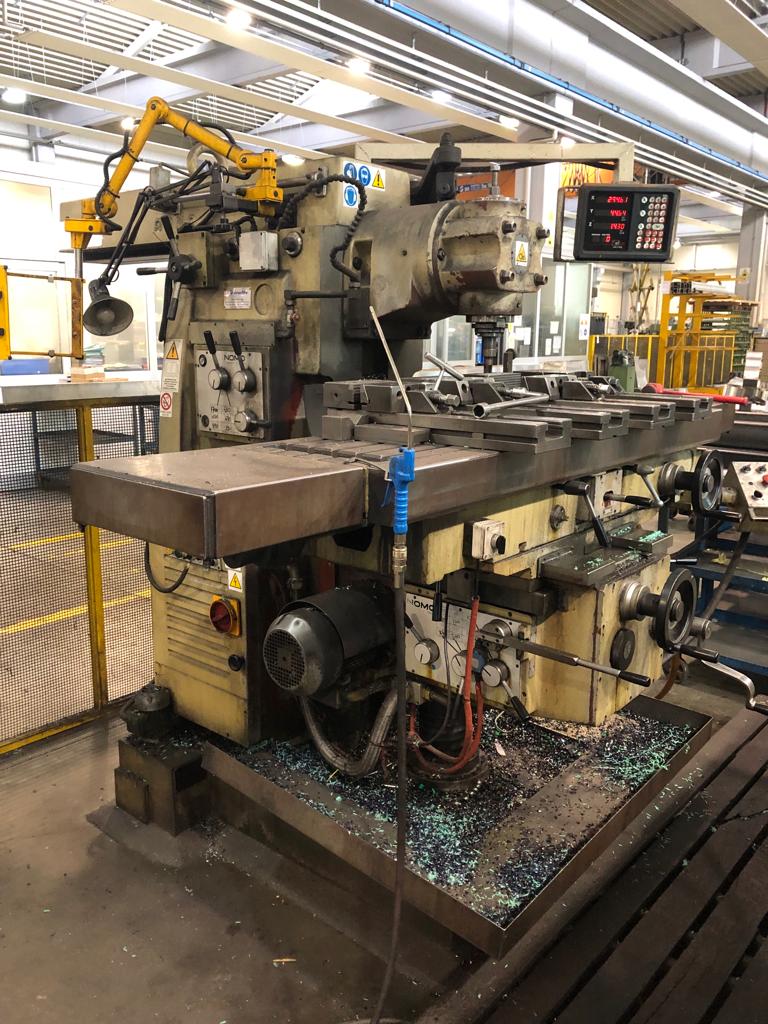

Milling Machine Nomo Arno Tipo 30

• Code: AAOW1476
• Manufacturer: Arno
• Description:
  • Make  Nomo Arno
  • Serial  7401
  • Table  1550 x 350 mm
  • Rotary  table  45°
  • Stroke
  • Longitudinal  1150 mm
  • Transversal  330 mm
  • Vertical  440 mm
  • Feeding  N 12
  • Longitudinal 10 – 880 mm I’
  • Transversal  10 – 880 mm I’
  • Vertical  4 – 350 mm mm l’
  • Rapids
  • Longitudinal  2700 mm l’
  • Transversal  2700 mm l’
  • Vertical 1100 mm l’
  • Spindle  Iso N. 50 – 2 3/4
  • RPM  40 -  1700 giri
  • Spindle motor 10 HP
  • Weight  3500 kg
