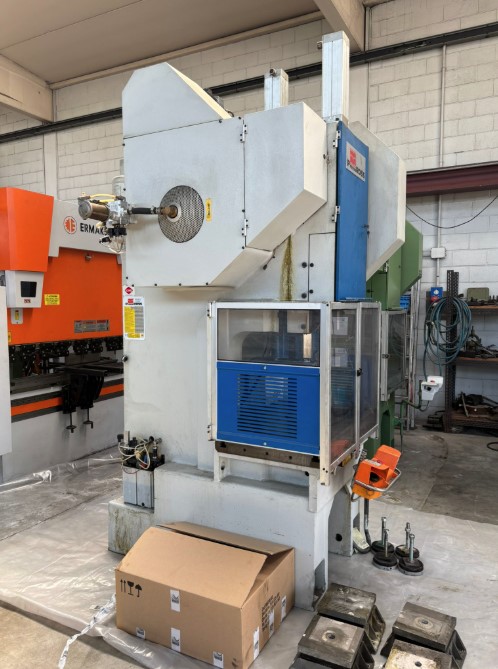

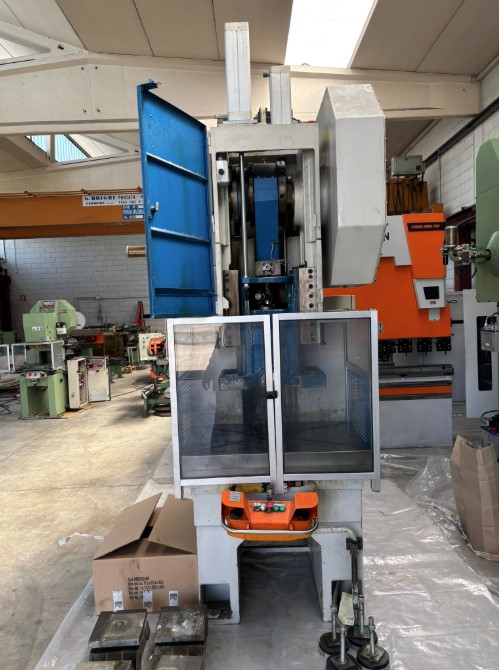

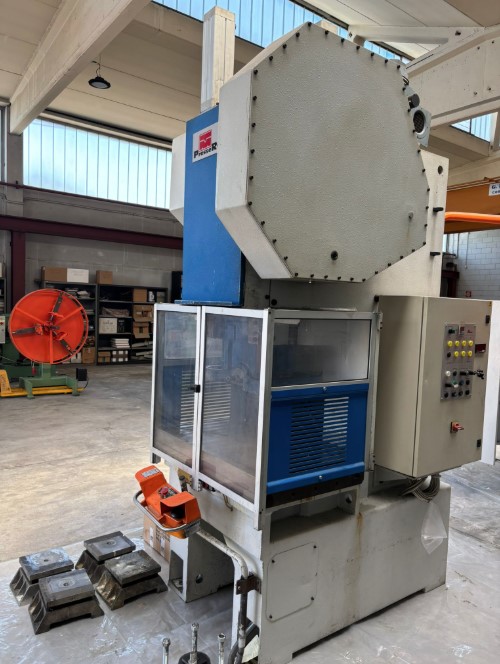

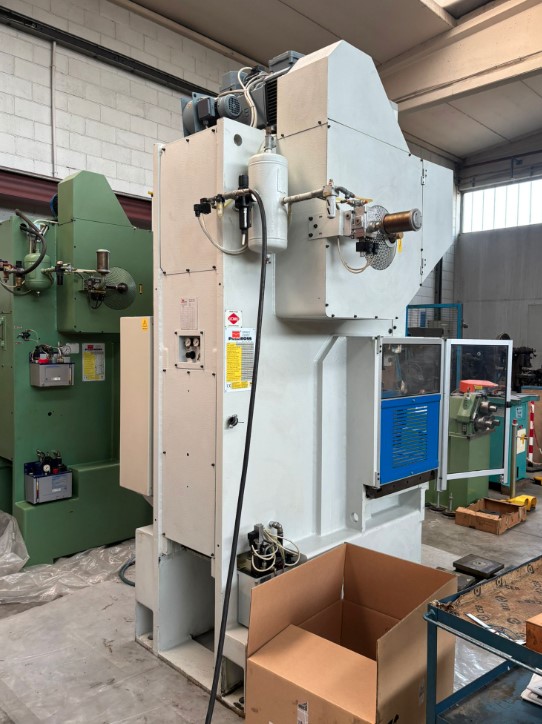

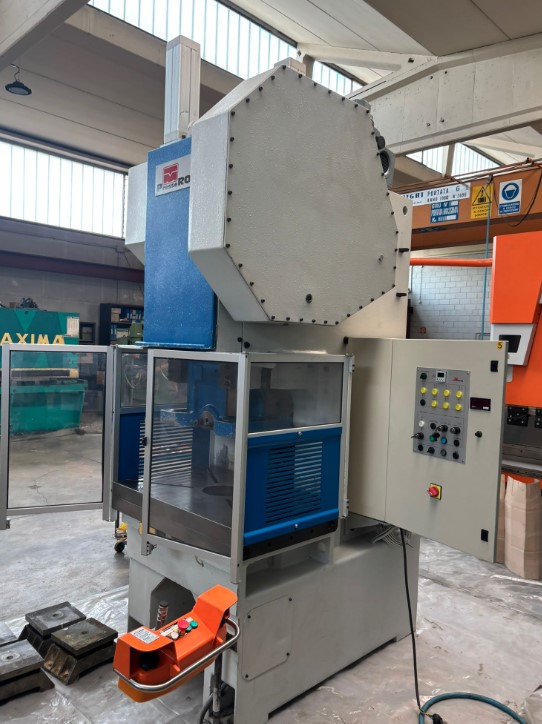

Press Ross 100 ton

• Code: AAOW1744
• Manufacturer: Ross
• Tons: 100

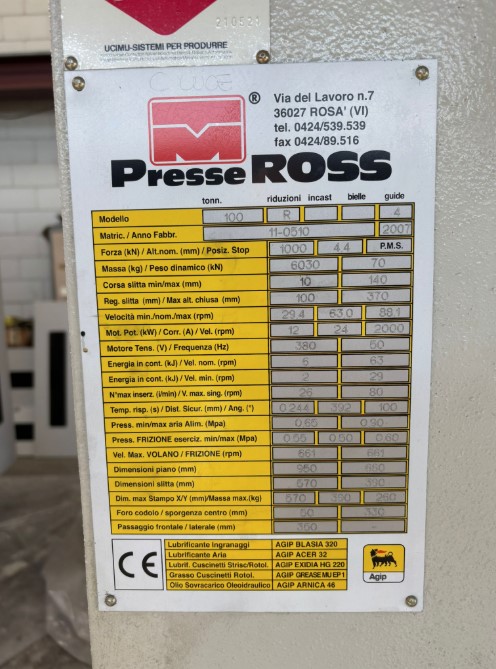

• Description:
  • Brand Ross
  • Capacity 100 Ton
  • Model 100 R 4 Guides
  • Stroke (Slide) Min/Max 10 – 140 mm
  • Slide Adjustment 100 – 370 mm
  • Speed Min/Nom/RPM 29.4 – 63 – 88.1
  • Motor Power 12 kW
  • Motor Voltage & Frequency 380 V & 50 Hz
  • Table Dimensions 950 x 660 mm
  • Slide Dimensions 570 x 390 mm
  • Die Dimensions 570 x 260 mm
  • Shank Hole 50 x 330 mm
  • Side Opening/Clearance 360 mm
  • Year 2007 CE
