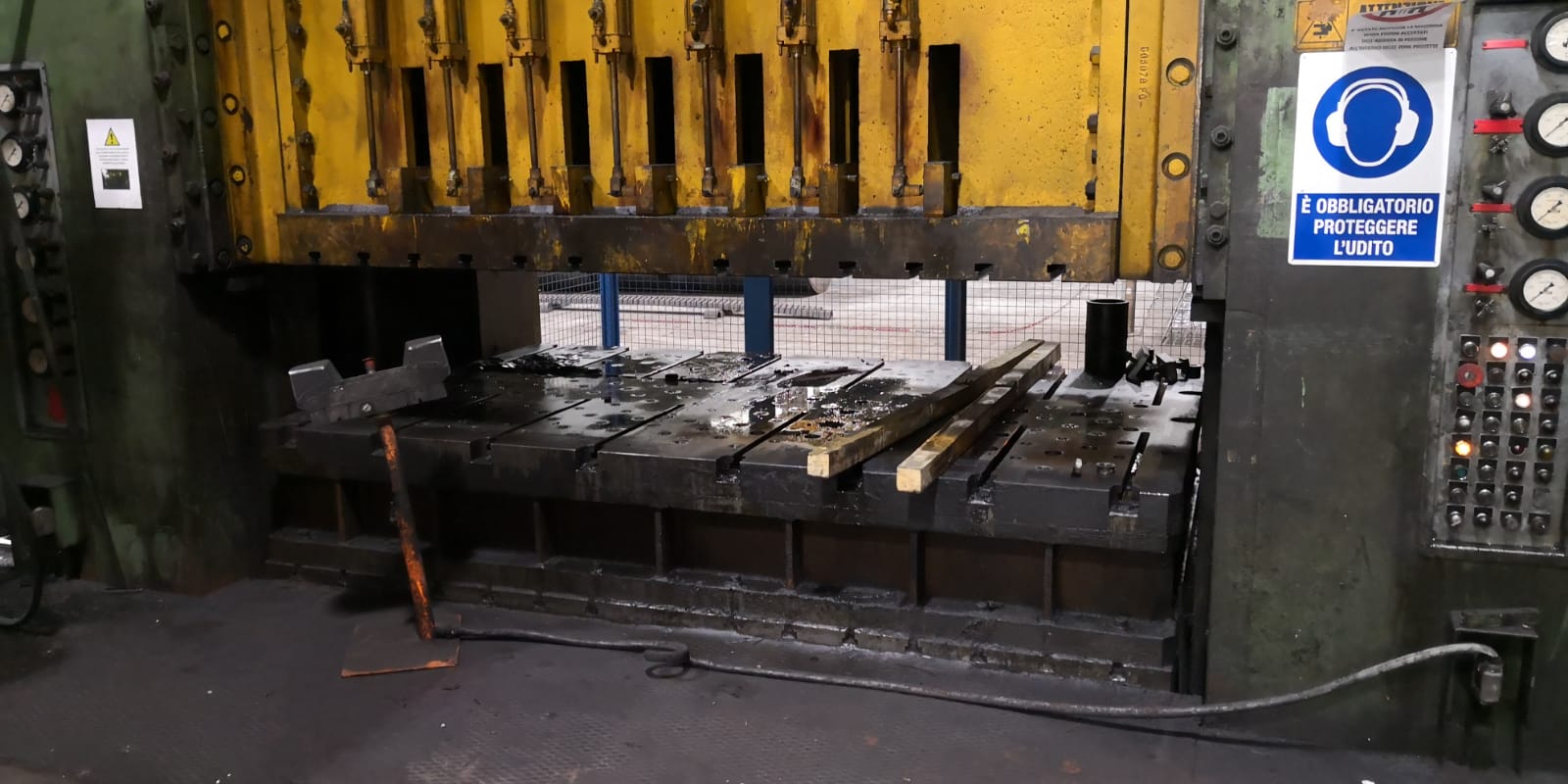

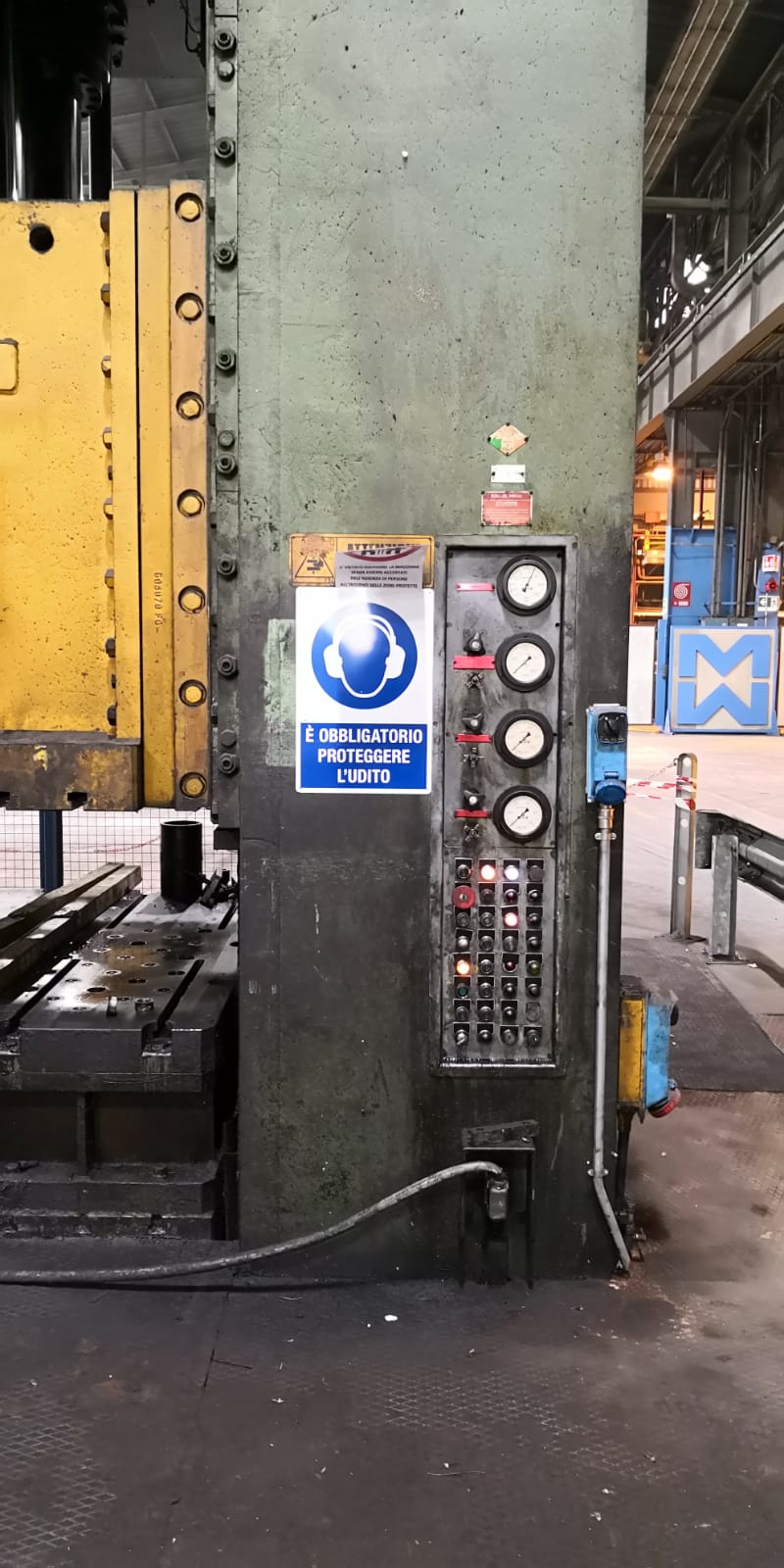

Pressa Emanuel 2000 ton

  • Codice: AAOW1054
  • Marca: Emanuel
  • Tonnellaggio: 2000
  • Descrizione:
    • Marca/make Emanuel
    • Modello/type Dea 2000/3200x2000-450
    • Capacità/capacity 2000 ton
    • Idraulica a Doppio effetto/double acting hydraulic press
    • Reazione massima premilamiera/blankholder reaction capacity  640 ton
    • Spinta utile in apertura slitta/slide opening capacity 70 ton
    • Potenza installata (3x150)/installed power 330 kw
    • Velocità di accostamento/approach speed 450 mm/s
    • Velocità a piena potenza/speed at full power  13 mm/s
    • Velocità a metà potenza/half power speed 23 mm/s
    • Velocità di salita slitta/rising speed 280 mm/s
    • Velocità salita premilamiera/come back blankholder’s speed 100 mm/sec
    • Luce max tra i piani/max light between the tables 2200 mm
    • Piano/table 3200 x 2000 mm
    • Piano premilamiera/blankholder’s table 2850 x 1650 mm
    • Corsa slitta/ram’s stroke 1100 mm
    • Corsa piano premilamiera/blankholder’s table stroke 500 mm
    • Profondità sotto filo terra/depth under the ground level 2500 mm
    • Altezza da terra piano di lavoro/tabl’es height from the ground 300 mm
    • Altezza fuori terra/height from the ground 7500 mm
    • Larghezza frontale superior/upper frontal width 6000 mm
    • Larghezza laterale superiore/upper lateral width 3800 mm
    • Apertura laterale/lateral opening 800 mm
